Audi C7/D4 4.0 TFSI Ultimate Methanol Injection Kit

Meth Spacer Installation: https://kyletunedit.com/docs/methanol-injection/audi-c7-d4-4-0-tfsi-methanol-injection-spacers/

MI4 Controller Wiring: https://kyletunedit.com/docs/methanol-injection/kyletunedit-mi4-methanol-injection-via-can/

Pre-installed parts on methanol distribution manifold

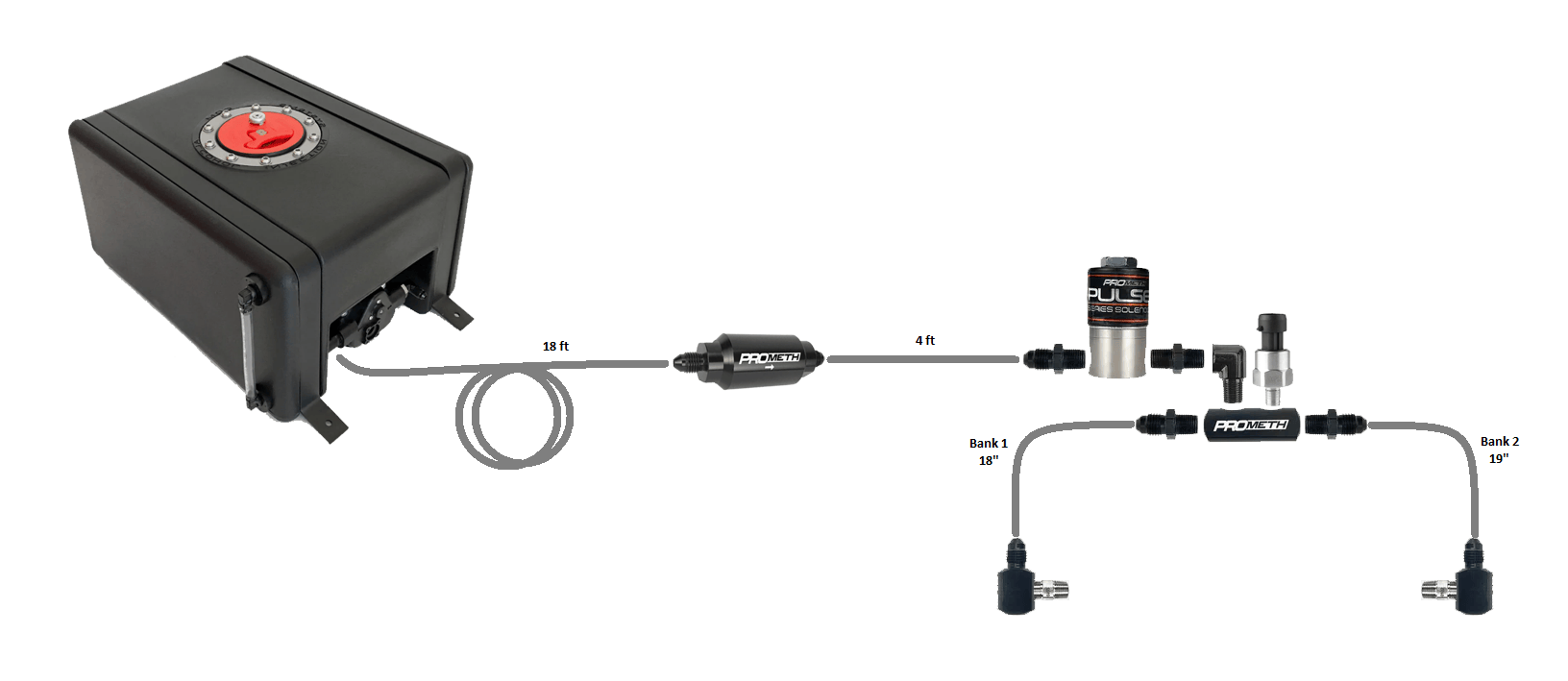

Methanol injection system diagram
Manifold installed on engine with clamps and lines
The tank must be installed in the correct orientation to prevent starvation under acceleration!
Complete installed kit in engine bay. Silicone hoses are trimmed ~35mm for most setups, please verify length between your turbos/throttle body before cutting.
