First, go to tuneit.shop and register your account. You will be redirected to the page with the download link for the software. You will also receive an email with a temporary password to log into the software. (The user name and password are not the same as the KYLETUNEDIT website)

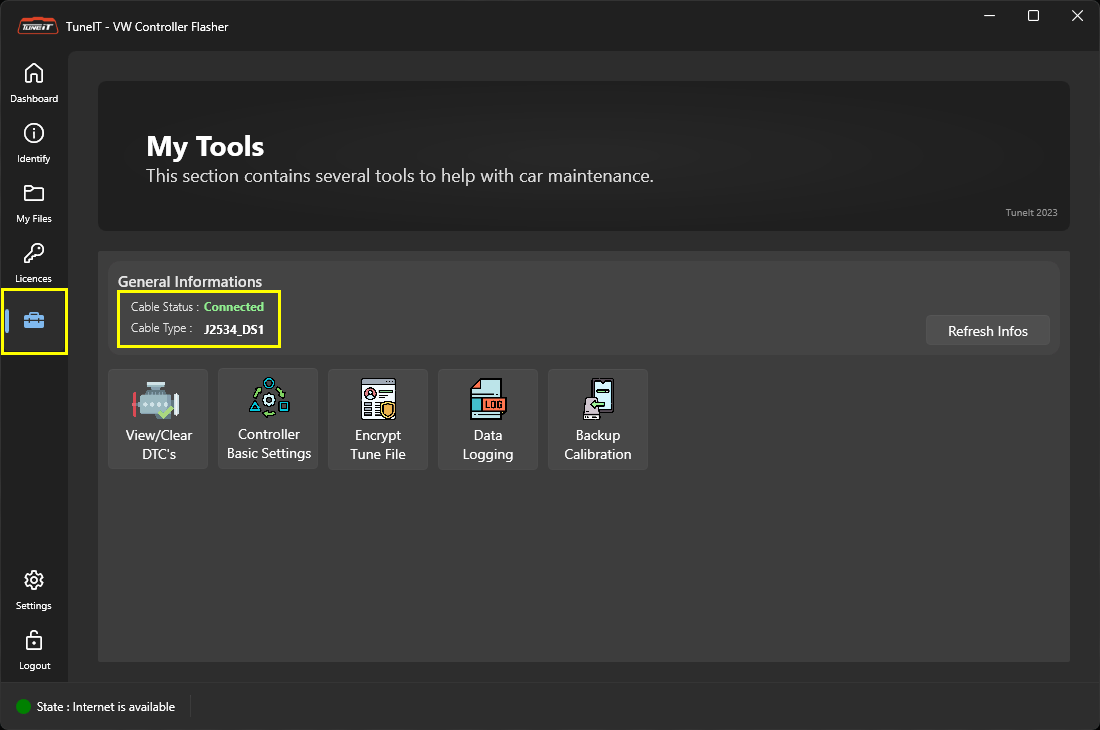

Click on the “Tools” tab on the left and make sure that the cable status shows connected

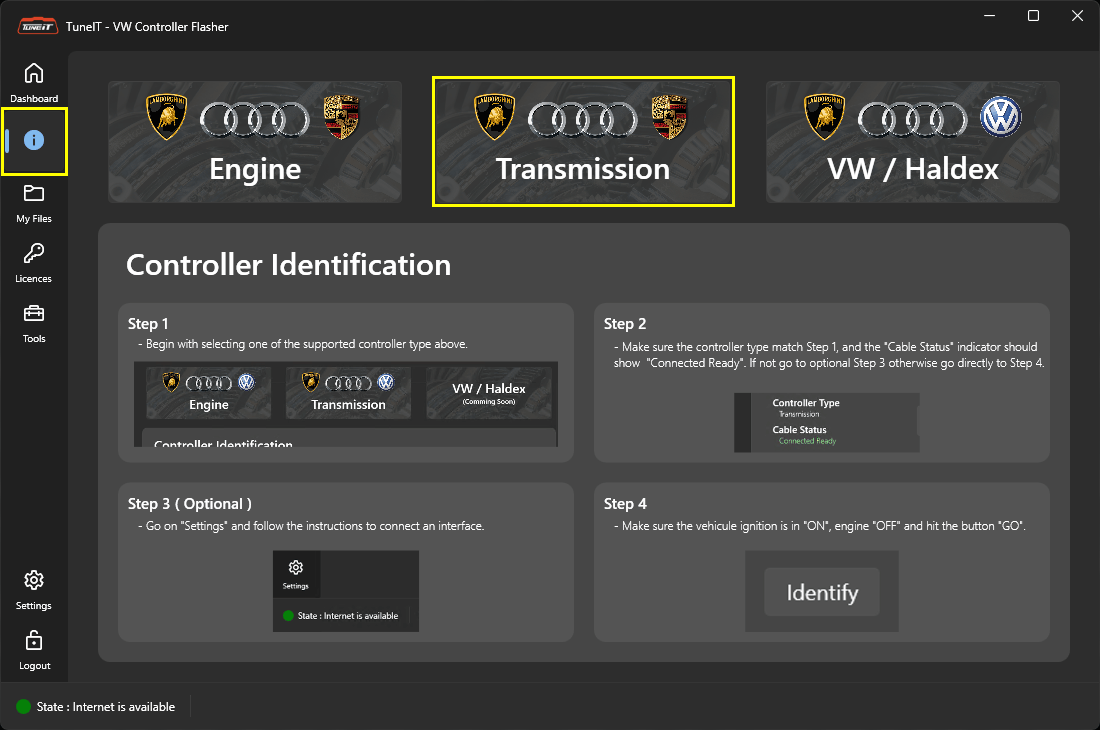

Click the “Identify” tab and then click “Transmission”

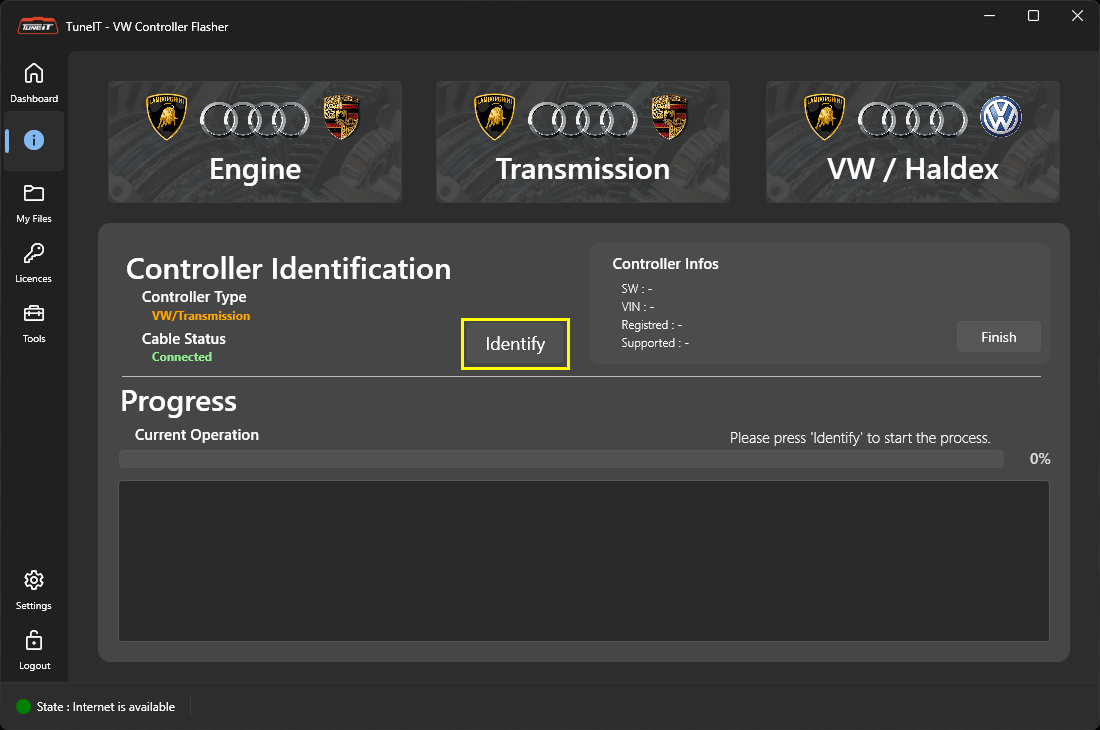

You will see the identification text show up on the bottom and populate the controller info at top right.

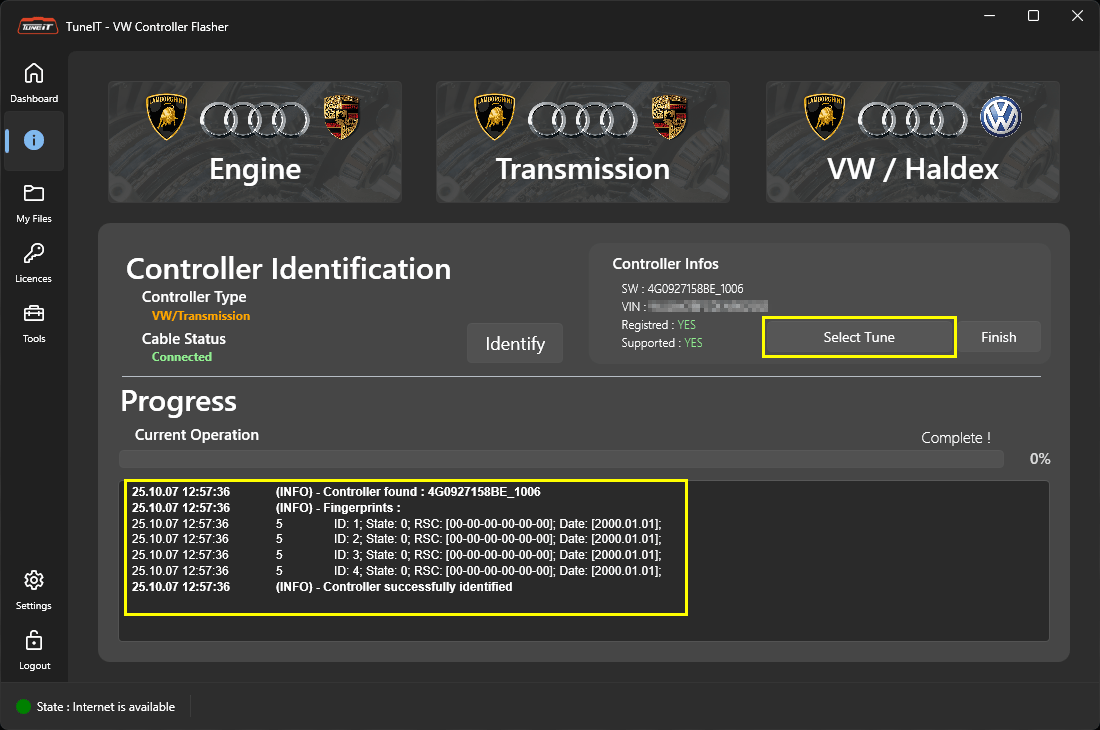

At this point, we will receive an automatic e-mail with your controller information so that we can send you the correct tune file. Once that file is received, then you can come back to this point in the process and complete the flash. Once you have the file, click “Select Tune”

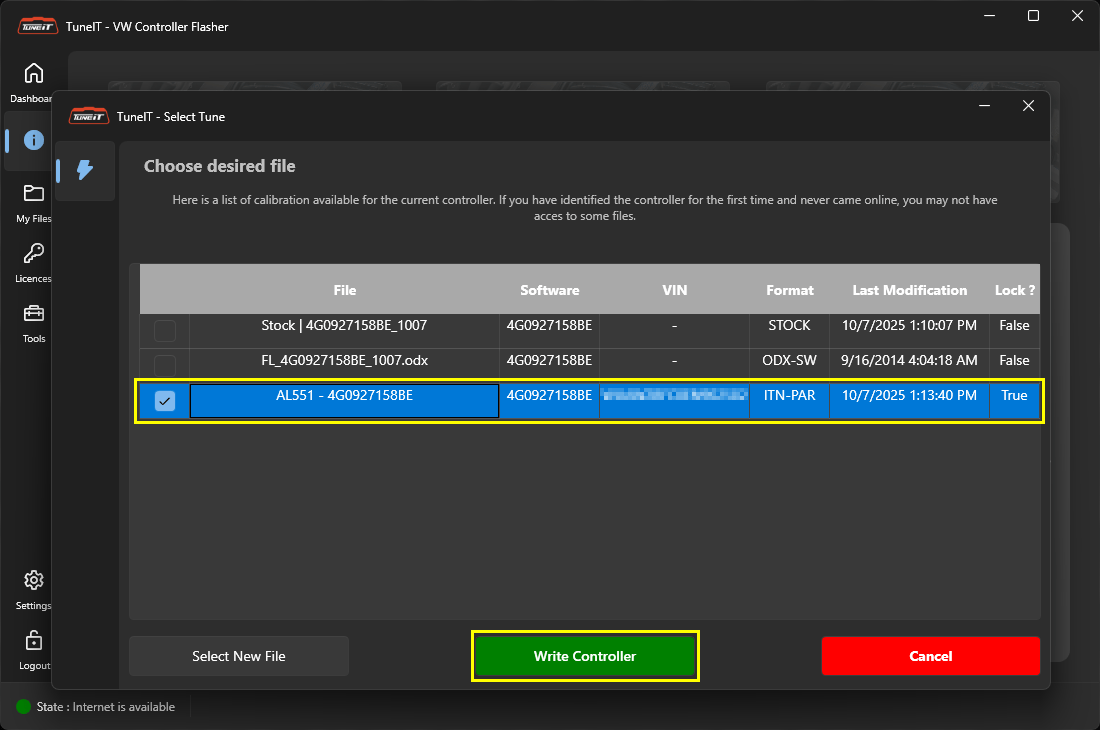

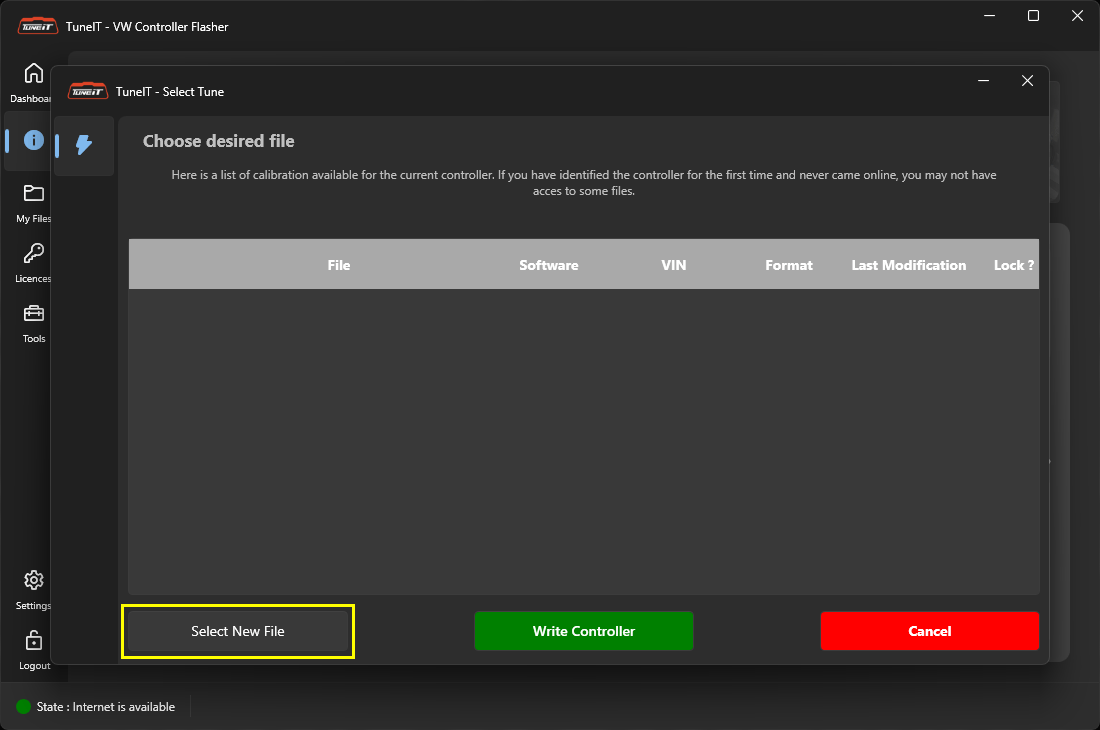

Here you will see the list of tunes available to flash. There will be a stock flash on the server, and you can click “Select New File” to upload your own file or a tuned file from KYLETUNEDIT.

After uploading your file, click it to highlight it and then click “Write Controller”

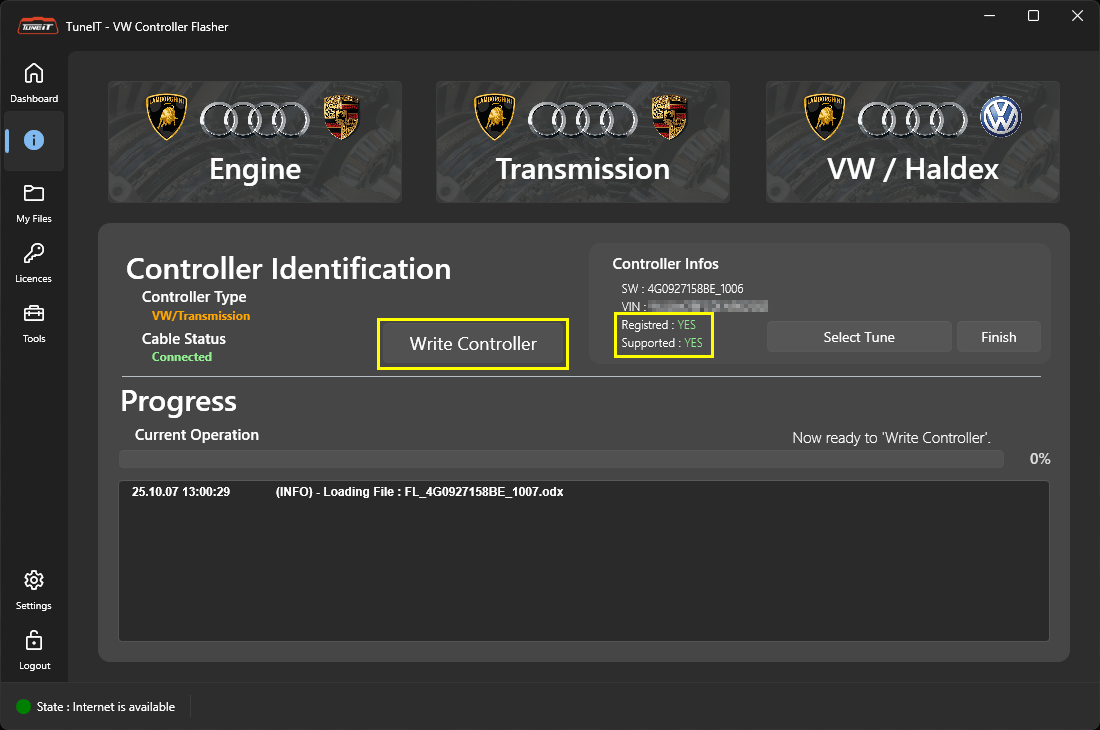

The file is now loaded and ready for flashing. Double check that your controller is registered and supported, and then click “Write Controller”

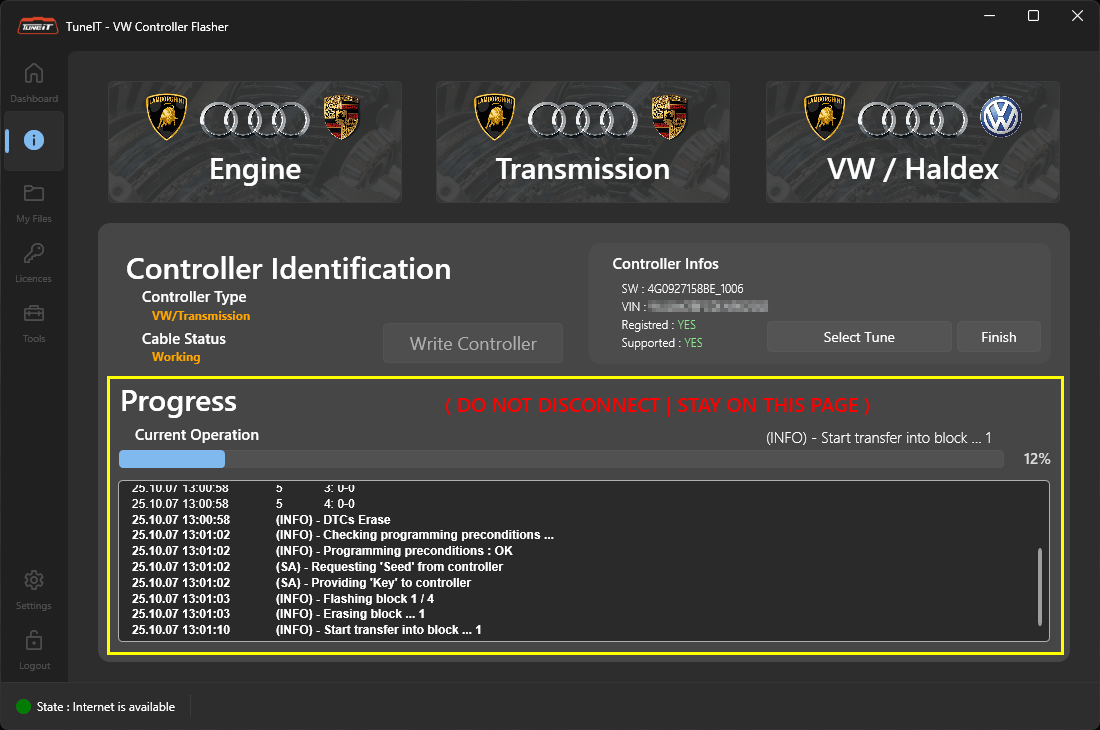

During the flash process do not disturb the vehicle or the computer. A stock flash or upgrade may take about 5 minutes to flash. A calibration only should take less than 1 minute to complete.

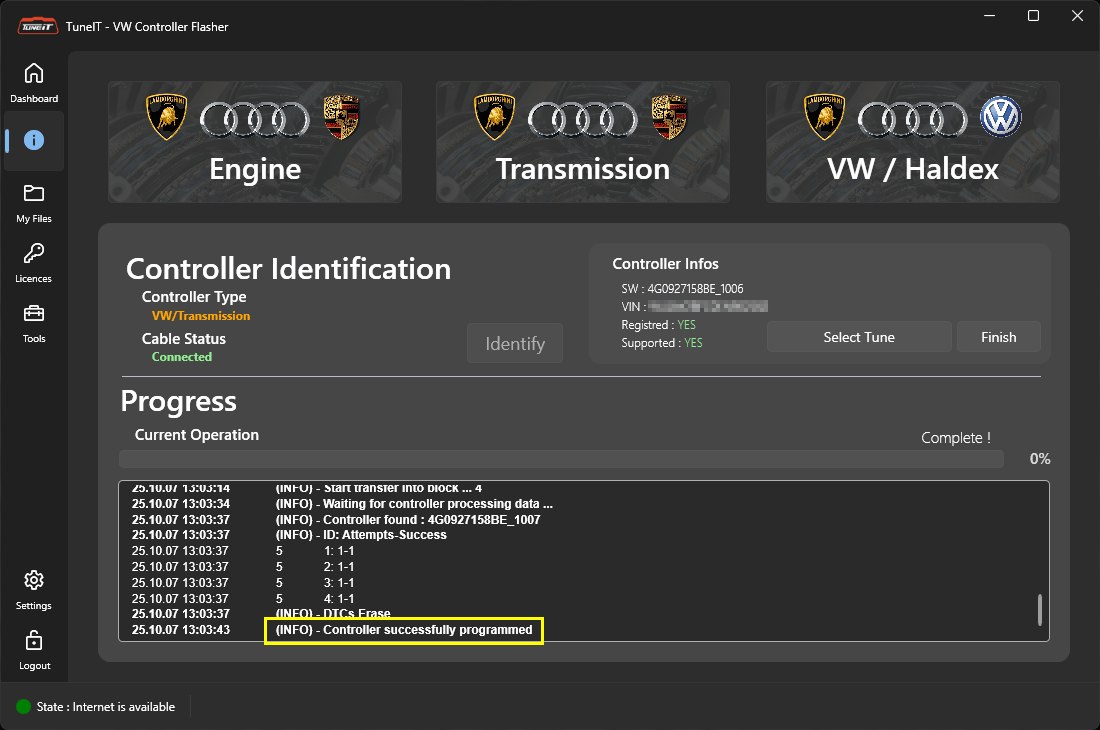

At the end, you will see “Controller successfully programmed” This tells you that everything was performed correctly. You may now exit the application.

Please reply to your TCU tune e-mail or reach out to tuning@kyletunedit.com if you have any issues during this process.

Hotline: +1-702-702-TUNE (8863)
